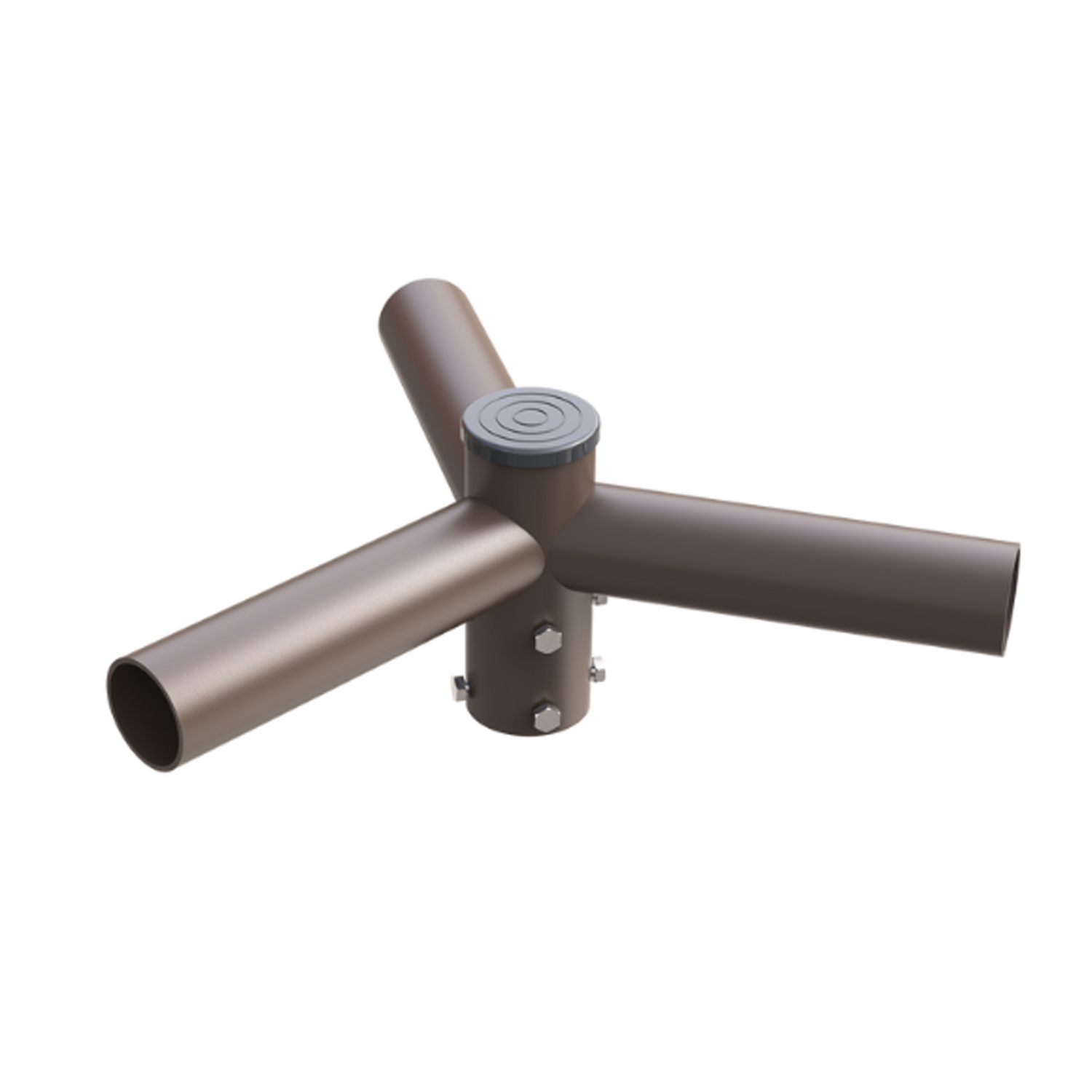

The Triple 120° Horizontal Tenon Adapter is a heavy-duty mounting accessory designed for outdoor lighting applications, particularly for attaching multiple light fixtures (such as LED floodlights or area lights) to a single pole or tenon at 120° intervals. It provides a secure, horizontally oriented three-arm configuration that allows symmetrical distribution of lighting heads around a pole.

This adapter is manufactured from high-strength 0.235" steel (approximately 6mm thick), processed according to strict engineering drawings. It is ideal for commercial, industrial, sports, and municipal lighting projects where wide-area illumination and balanced weight distribution are required.

Key Features & Dimensions

• Arm Configuration: Three arms spaced precisely at 120° angles for uniform 360° coverage.
• Arm Length: Approximately 254mm (10") outer dimension.
• Central Hub: Reinforced cylindrical hub with mounting provisions.
• Mounting Hardware:
  • 6 pcs M8.315" (8mm) bolts (0.79" / 20mm length).
  • 2 pcs M8.393" (10mm) bolts.
  • 1 metal rain cover for weather protection.
• Tenon Compatibility: Designed to fit standard horizontal tenons (exact ID/OD dimensions shown in drawing: 2.28" / 58mm, 2.50mm wall, etc.).

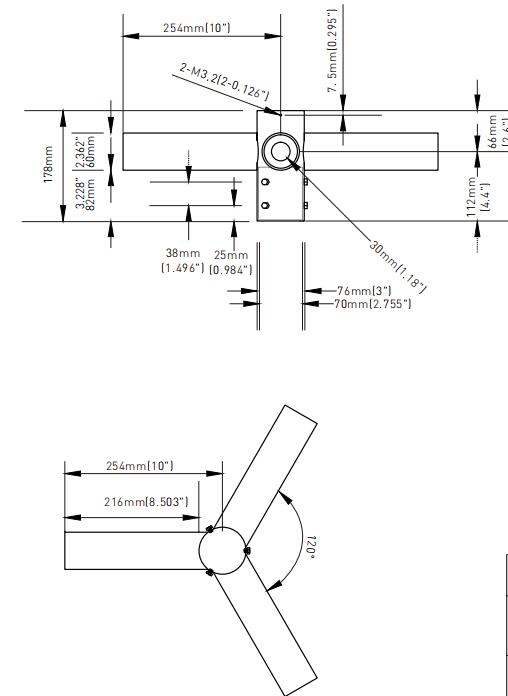

• Overall Dimensions: Refer to the technical drawing for precise measurements (e.g., 254mm arm span, 179mm height sections, 112mm projections, etc.).
