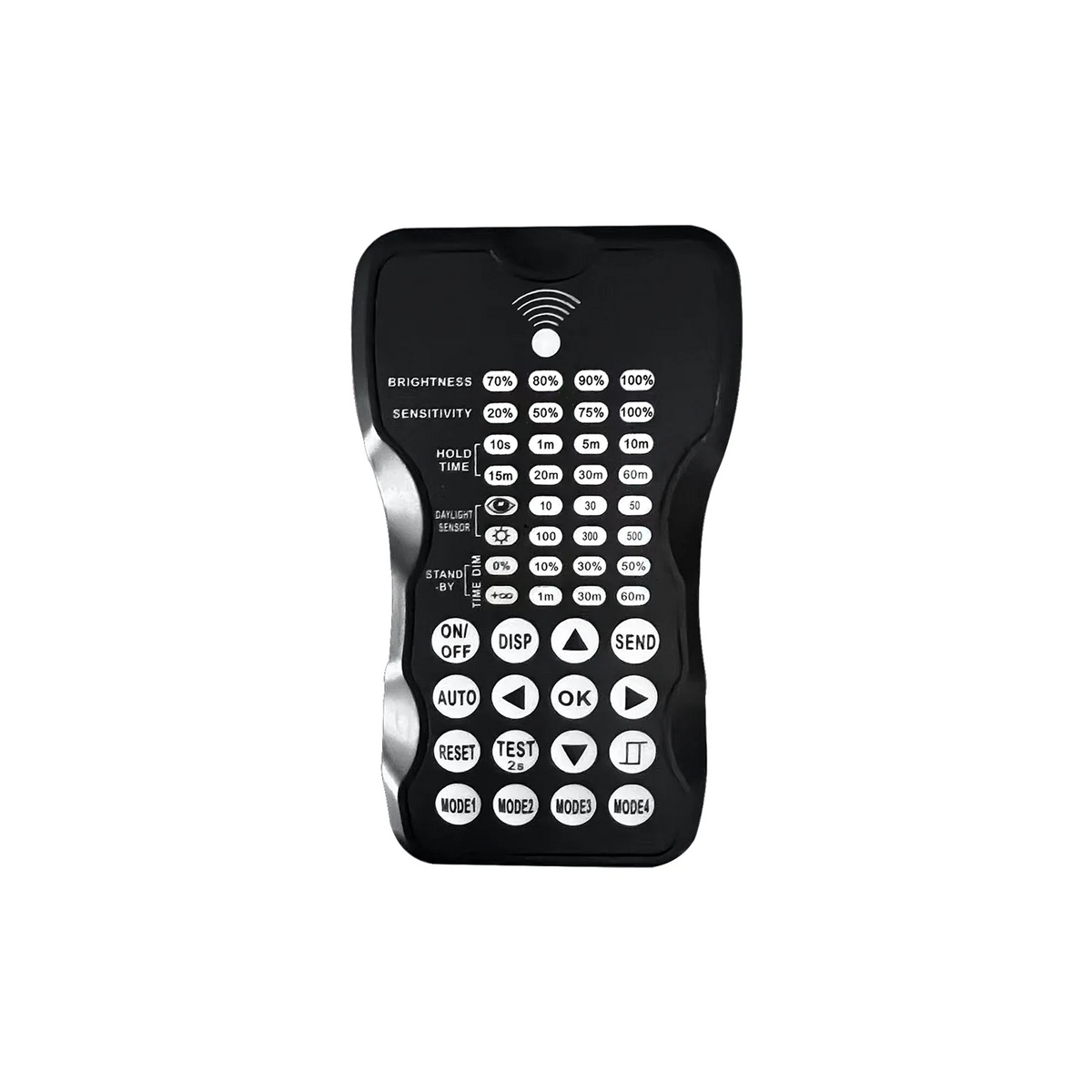

Simplify your lighting control setup with the RC-100 Handheld Remote Programmer. Engineered for seamless wireless configuration of LED sensors—including those used with the Ledsion 5EHB & 12EHB UFO High Bay Light series—this tool lets contractors and facility managers change dimming thresholds, hold times, and sensor modes ground-level without needing ladders or scaffolding.

Key Features

• Effortless Ground-Level Programming: Easily configure sensors installed on high bay fixtures at mounting heights up to 50 feet (15 meters) using bidirectional IR communication.
• Broad Compatibility: Fully compatible with Ledsion 5EHB & 12EHB series UFO High Bays, ANT-6-4T motion sensors, and 0-10V dimmable fixture sensors.
• One-Touch Parameter Upload: Set parameters once and upload them to multiple sensors in seconds using the SEND button for fast, batch setup across large spaces.
• 4 Customizable Scene Modes: Store up to 4 custom parameter presets (MODE 1–4) to quickly apply standardized lighting behaviors across different warehouse zones or rooms.
• Clear LED Indicator Matrix: Easily review and adjust settings like Brightness, Sensitivity, Hold Time, Daylight Threshold, Stand-by Dimming, and Stand-by Time.
• Smart Daylight & Corridor Functions: Toggle integrated photocell daylight sensing and tri-level corridor dimming logic with ease.
• Carrying Case Included: Comes with a protective carrying case for safe storage on job sites.

Technical Specifications

• Model: RC-100
• Compatibility: Designed for Ledsion 5EHB & 12EHB UFO High Bay Sensors (e.g., ANT-6-4T)
• Power Supply: 2 x AAA 1.5V Batteries (Alkaline preferred)
• Communication Distance: Up to 50 ft. (15 m)
• Operating Temperature: 32°F to 122°F (0°C to 50°C)
• Dimensions: 4.84" x 2.76" x 0.8" (123 x 70 x 20.3 mm)
• Included Accessories: Carrying Case
