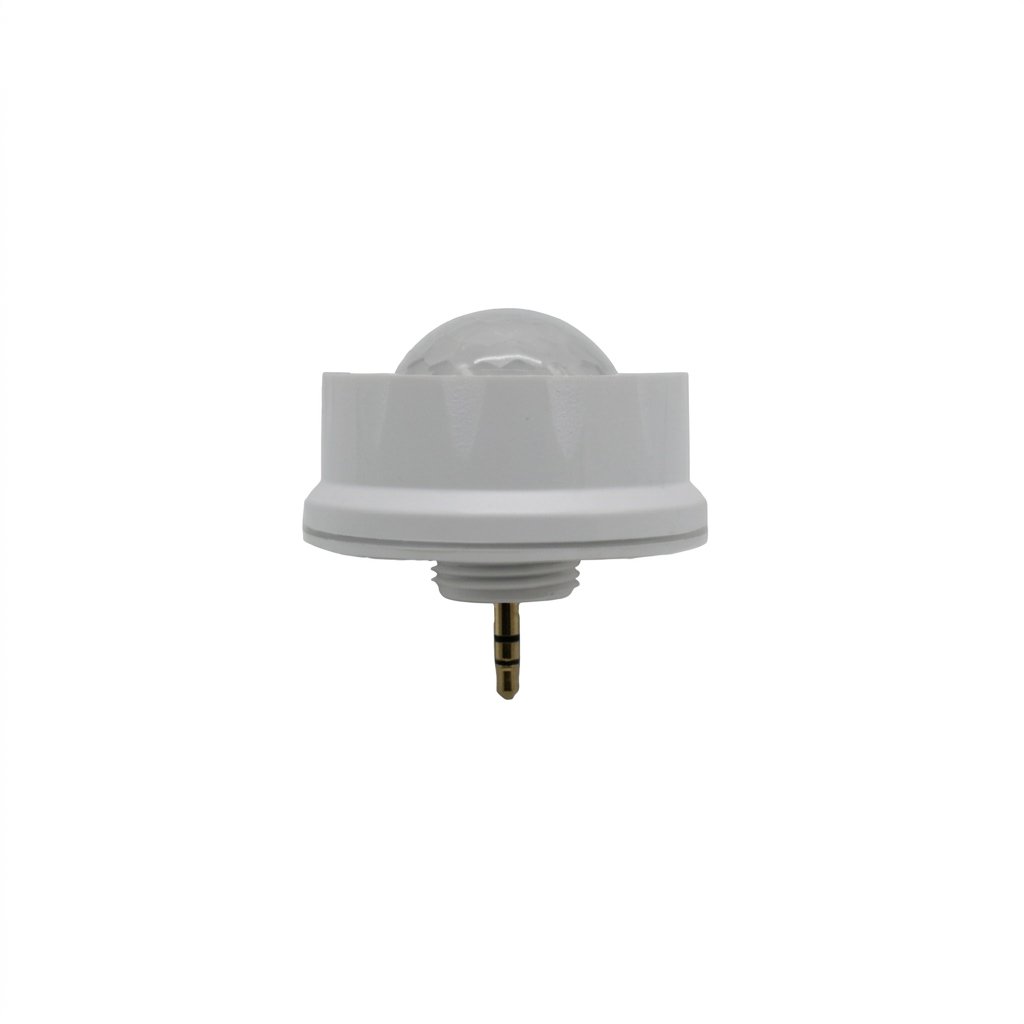

Optimize energy efficiency and intelligent lighting control with the HD07VR-PH-1 PIR Sensor. Engineered specifically for high bay applications including the Ledsion 5EHB and 12EHB UFO High Bay Light series, this plug-and-play sensor features a 3.5mm audio jack connector for quick and secure installation.

Key Features

• Seamless Compatibility: Designed specifically for LED high bay fixtures featuring an audio jack receptacle, perfectly matching Ledsion 5EHB & 12EHB UFO lights.
• Bi-Level Dimming & Daylight Harvesting: Delivers smart multi-level control with customizable hold times, standby dimming levels, and a built-in dusk/dawn photocell sensor.
• High Bay Coverage: Engineered for ceiling mounting heights up to 39.37 feet (12 meters) with a wide adjustable detection radius of 9.84 to 22.96 feet.
• Wireless Remote Programmable: Parameters can be easily adjusted using a compatible handheld remote programmer (such as the HD05R) without needing physical ladders.
• UL Certified Quality: Rigorously tested and certified to meet high safety standards (UL E529048).

Technical Specifications

• Model Number: HD07VR-PH-1
• Input Voltage: 12VDC (10-15VDC range, >30mA current)
• Control Signal: 0-10V DC Dimming Output
• Detection Angle / Coverage: 360-degree, max 39ft (12m) mounting height
• Detection Area Settings: 25% / 50% / 75% / 100%
• Hold Time Options: 5s to 30min
• Daylight Threshold: Disable / 2lux to 120lux
• Operating Temperature: -4°F to +140°F (-20°C to +60°C)
• Certifications: UL Listed (E529048), CE, RoHS
