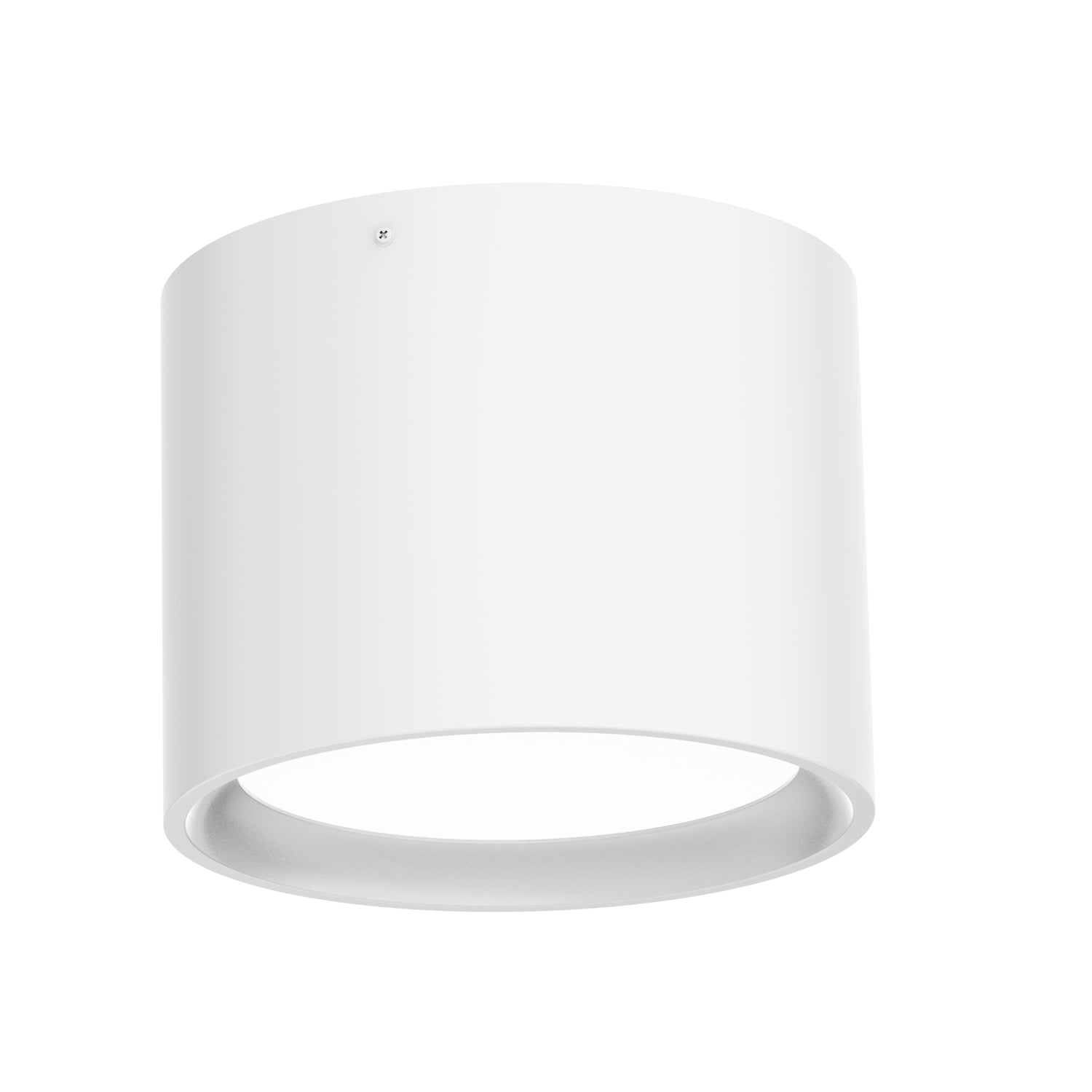

The Ledsion 5"/7"/9" Cylinder Ceiling Downlight combines modern minimalist style with practical performance. Featuring diffuse reflection optics for soft, uniform, anti-glare illumination that's gentle on the eyes, this downlight is perfect for creating comfortable lighting ambiances in any space.

Available in three sizes—5" (8W), 7" (12W), and 9" (18W)—with easy on-site 5CCT tuning (2700K/3000K/3500K/4000K/5000K), it adapts to diverse needs without multiple SKUs. Built from a durable PC and iron composite for excellent heat dissipation and moisture resistance, it's rated for damp locations. Supports surface mount or hanging installation, with slim profile for space-saving embedded fit. Fully Triac dimmable (verified with Lutron and Leviton dimmers), ENERGY STAR, ETL, and cETL certified for reliable, energy-efficient operation.

Specifications

• Models: WBCD5C8XXK (5") | WBCD7C12XXK (7") | WBCD9C18XXK (9")
• Finish: White
• Wattage: 8W (5") | 12W (7") | 18W (9")
• Lumens Output: 640 LM (8W) | 960 LM (12W) | 1,440 LM (18W)
• Light Efficiency: 80 LM/W
• CRI: >80
• Color Temperature: 5CCT Tunable – 2700K / 3000K / 3500K / 4000K / 5000K
• Input Voltage: 120V AC
• Dimming: Triac Dimmable (compatible with Lutron & Leviton listed dimmers)
• UGR: <19
• Beam Angle: 120°
• Sizes: • 5": Φ5.47" × 6" H • 7": Φ7.24" × 6" H • 9": Φ9" × 7" H

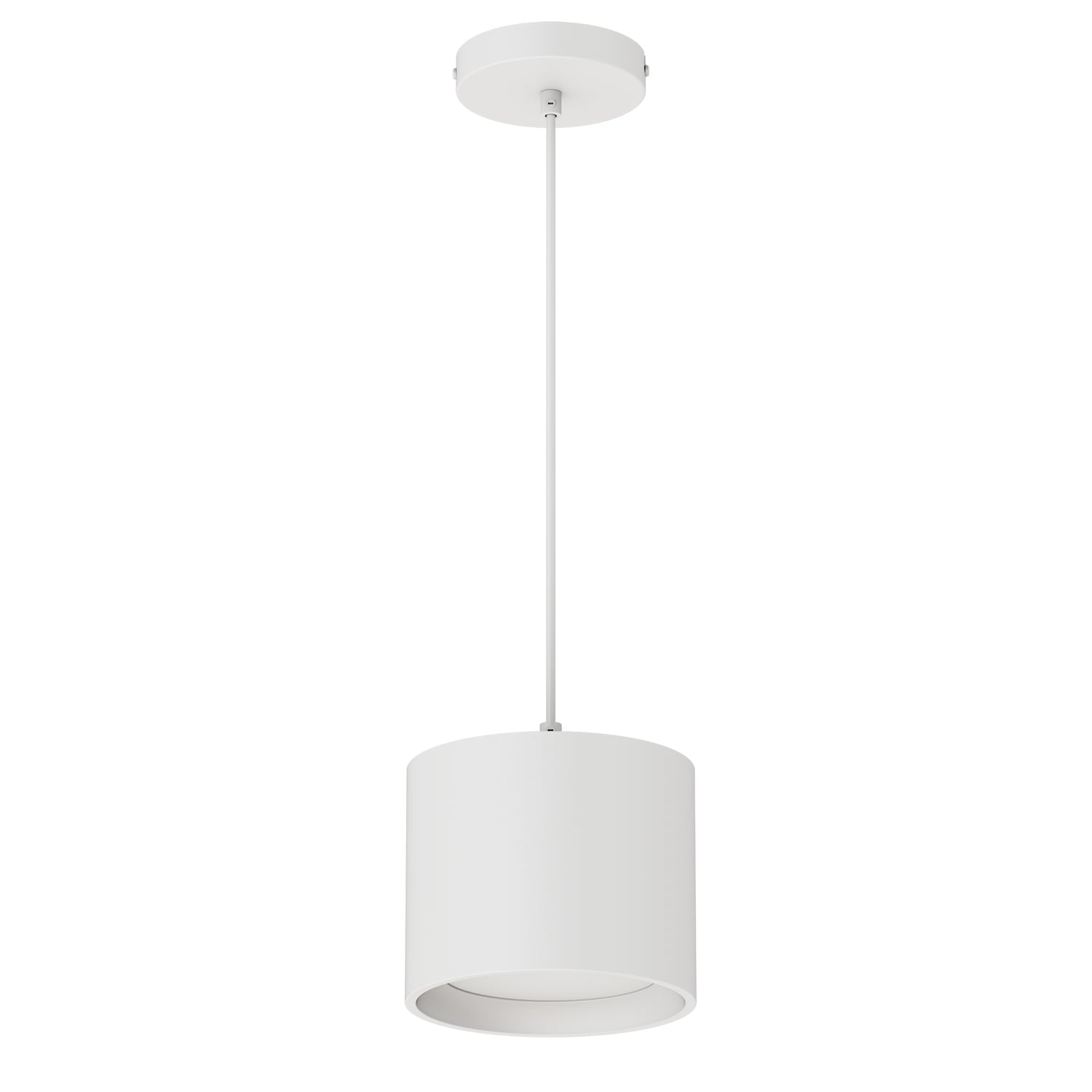

• Mounting: Surface mount or hanging mount
• Operating Temperature: -20°C to +45°C
• Junction Temperature: <75°C
• Lamps Efficiency: ≥90%
• Certifications: ENERGY STAR, ETL, cETL
• Equivalent: 16-90W MH/HPS
• Location Rating: Damp Location
• Warranty: 5-year limited warranty

Applications

• Office Lighting
• Meeting Room Lighting
• Store & Retail Shop Lighting
• Restaurant, Café & Bakery Lighting
• Commercial Lobby Lighting
• Co-working Space Lighting

Ideal for residential hallways, kitchens, or any interior where soft, adjustable, anti-glare downlighting enhances ambiance and functionality.
