Ledsion Lighting
Sold out

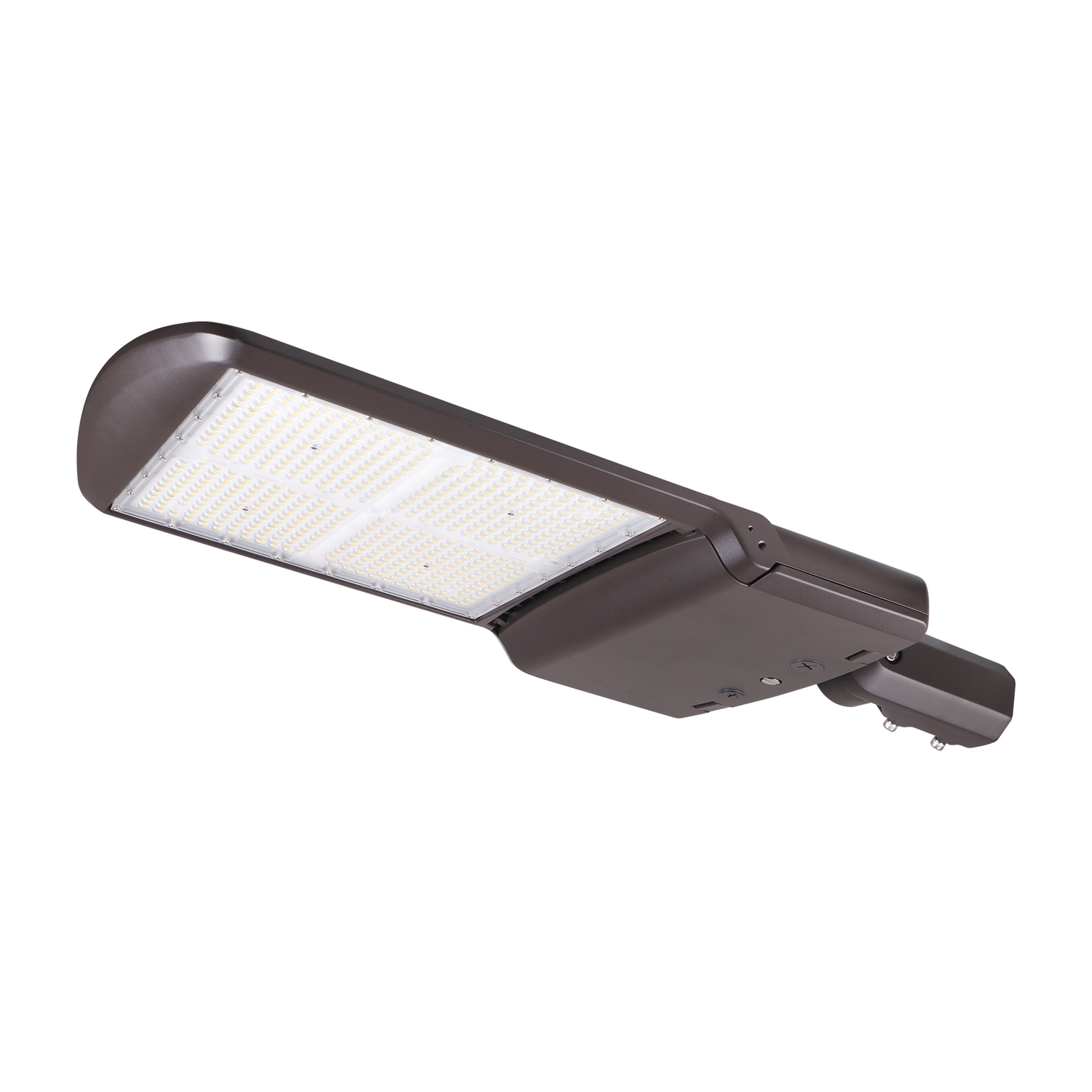

480W/450W/400W Tunable Shoebox LED Area Light - Type III - 140 LM/W - 0-10V Dimming | SBC14-480/450/400W-120V50K-A

SKU

Please create an account or contact us to place an order. Direct online ordering is currently unavailable.

Package
  • Package size:36* 17.6* 6.2 in (1 Pc)
  • Weight:26.5 LBS

Delivery and Shipping

We promise same day shipping, support pick up from our Dallas warehouse.

  • High Wattage Tunable – Adjustable between 400W / 450W / 480W
  • Excellent Efficiency – 140 LM/W with high-brightness Lumileds LEDs
  • Type III Distribution – Ideal for area and parking lot lighting
  • High Voltage Input – 120-277V
  • Durable Construction – Heavy die-cast aluminum housing with bronze powder-coated finish
  • Advanced Surge Protection – 6kV built-in + 10kV external
  • 0-10V Dimming – Standard dimming capability
  • Long Operating Life – 50,000 hours
  • Flexible Mounting – Multiple bracket options for easy installation

Specifications

Parameter Details
Model AST-S-G12C-480WBT3SA1 / AST-S-G12C-480WBT3SH3
Wattage 400W / 450W / 480W (Tunable)
Light Efficiency 140 LM/W
Lumen Output Up to 67,200 LM
Color Temperature 5000K
Light Distribution Type III
Voltage 120-277V
BUG Rating B5-U0-G5
Dimming 0-10V Dimming
CRI >80
Operating Temperature -20°C to +45°C
Warranty 5 Years



Applications

  • Powerful lighting solution for large commercial and industrial areas:
  • Parking Lots & Large Garages
  • Warehouses & Logistic Centers
  • Stadiums & Sporting Venues
  • Factories & Manufacturing Facilities
  • Shopping Malls & Supermarkets
  • Auto Dealerships

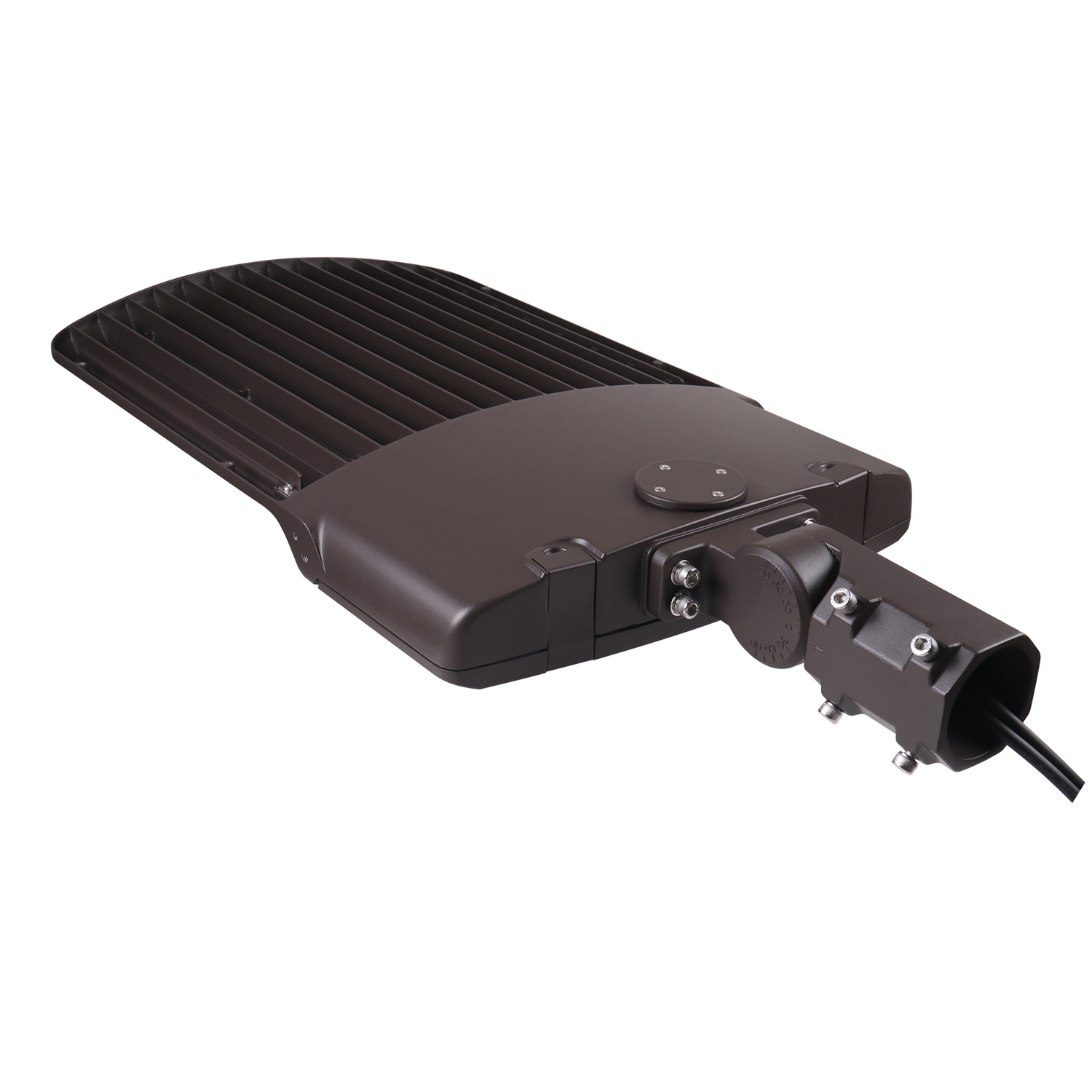

Mounting Options

  • Default: AM Slipfitter Mount
  • Optional: DM Direct Mount
  • Optional: YM Yoke Mount
