300W/240W/200W Tunable Shoebox LED Area Light - White Housing - Type III - 145 LM/W - 0-10V Dimming | SBC14-300/240/200W-57K-W
300W/240W/200W Tunable Shoebox LED Area Light - White Housing - Type III - 145 LM/W - 0-10V Dimming | SBC14-300/240/200W-57K-W - SBC14-300/240/200W-57K-W is backordered and will ship as soon as it is back in stock.
Please create an account or contact us to place an order. Direct online ordering is currently unavailable.
Package
Package
- Package size:26.9 * 15.7* 13 in (2 pcs)
- Weight: 30.1 LBS
Delivery and Shipping
Delivery and Shipping
We promise same day shipping, support pick up from our Dallas warehouse.
300W/240W/200W Tunable Shoebox LED Area Light - White Housing - Typ...
300W/240W/200W Tunable Shoebox LED Area Light - White Housing - Type III - 145 LM/W - 0-10V Dimming | SBC14-300/240/200W-57K-W - SBC14-300/240/200W-57K-W is backordered and will ship as soon as it is back in stock.

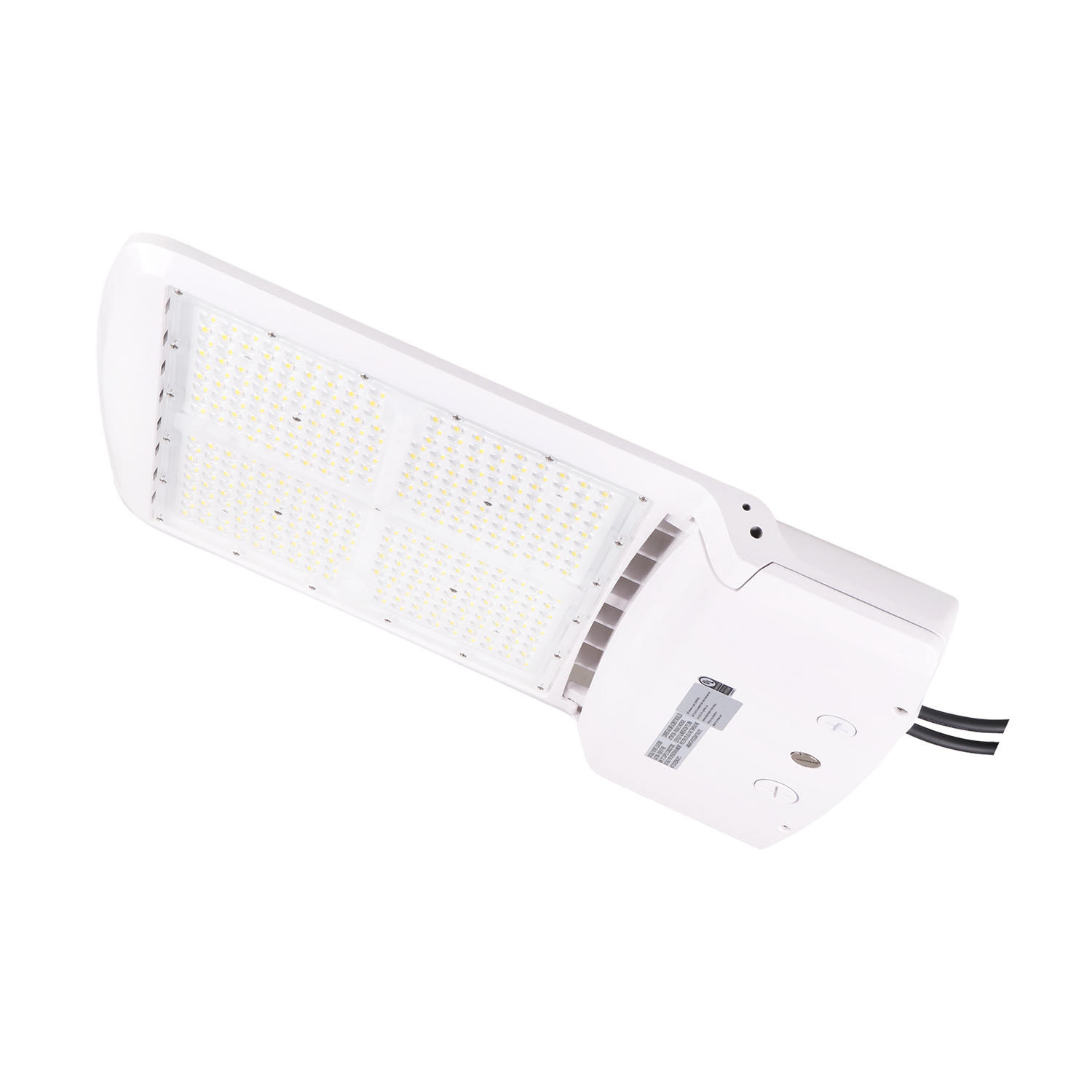

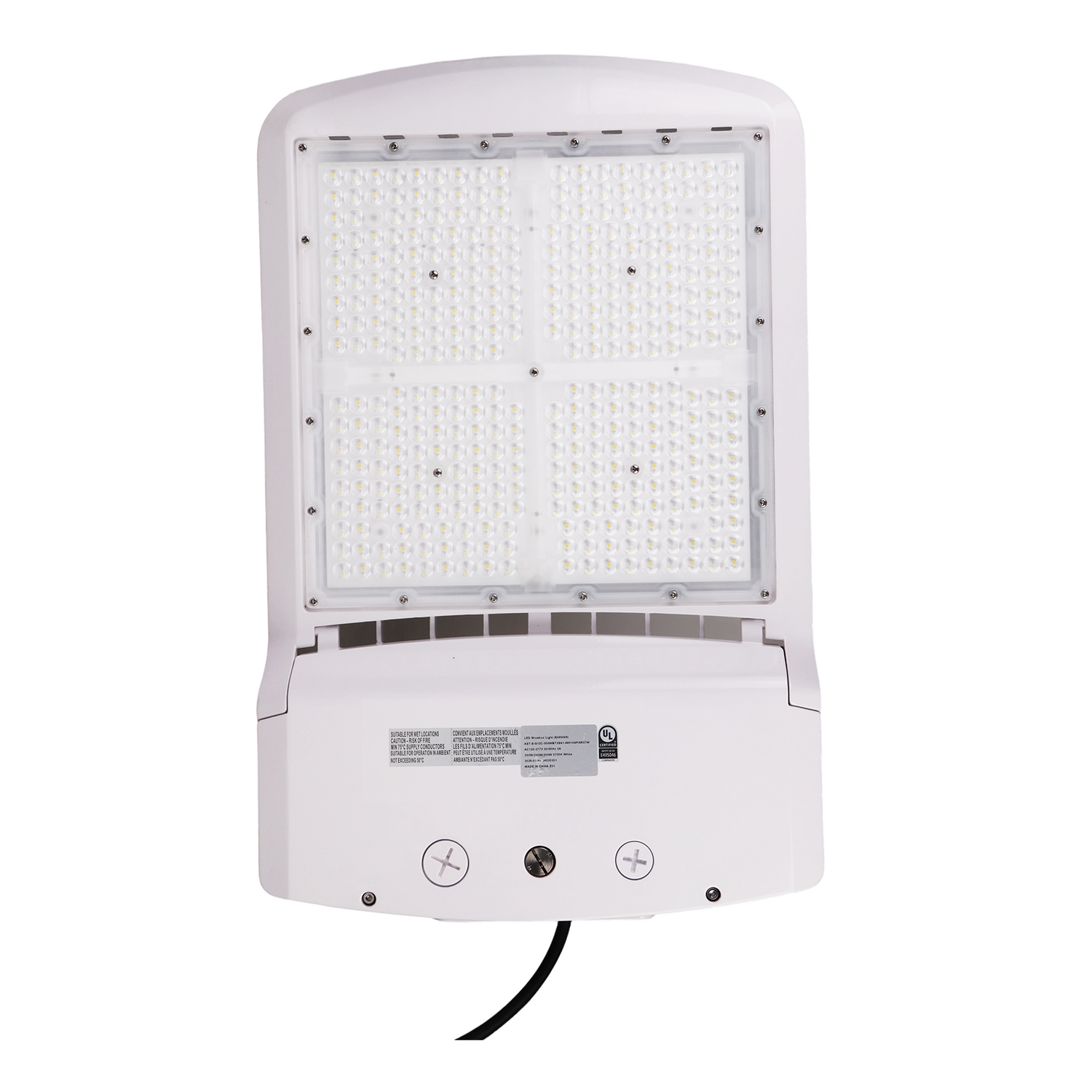

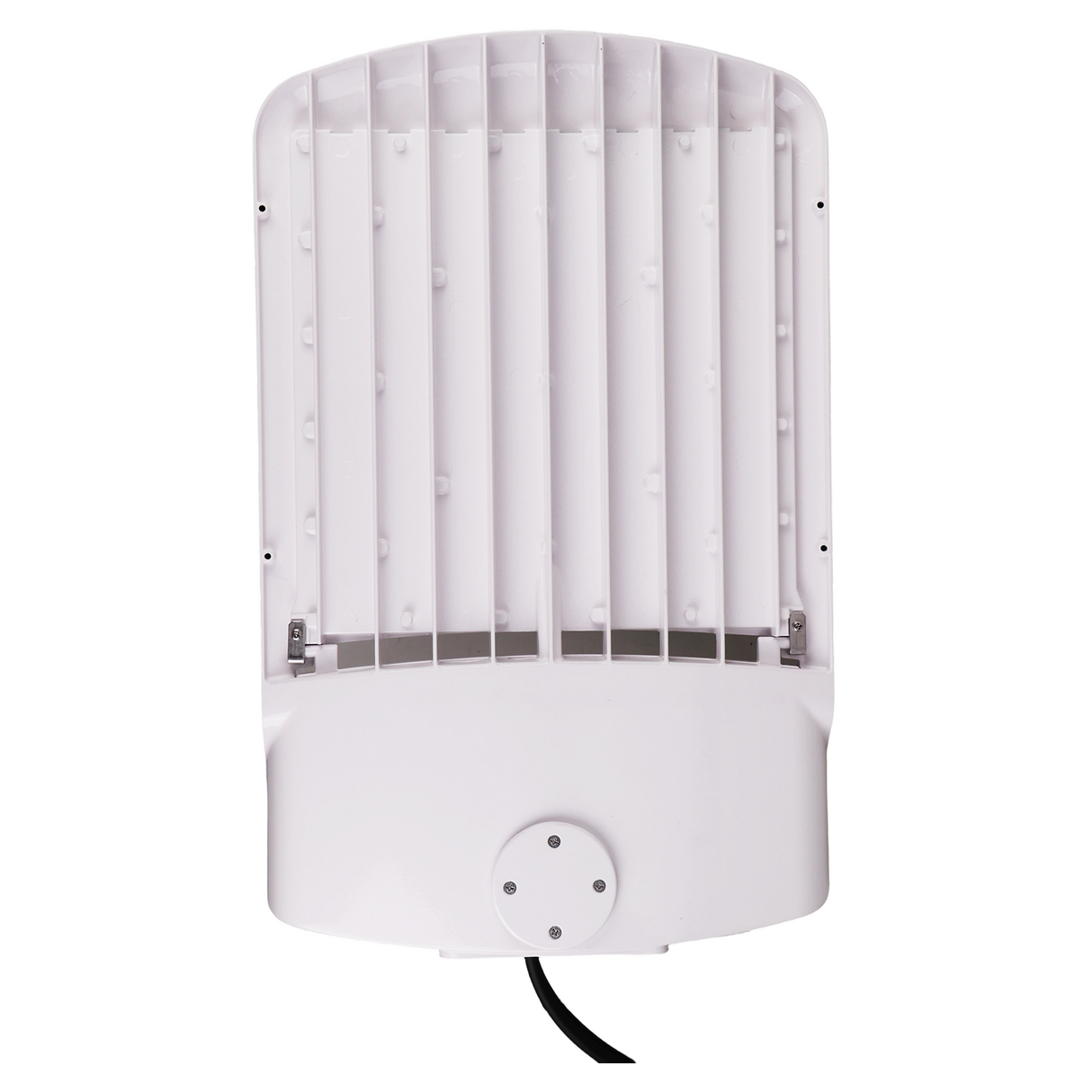

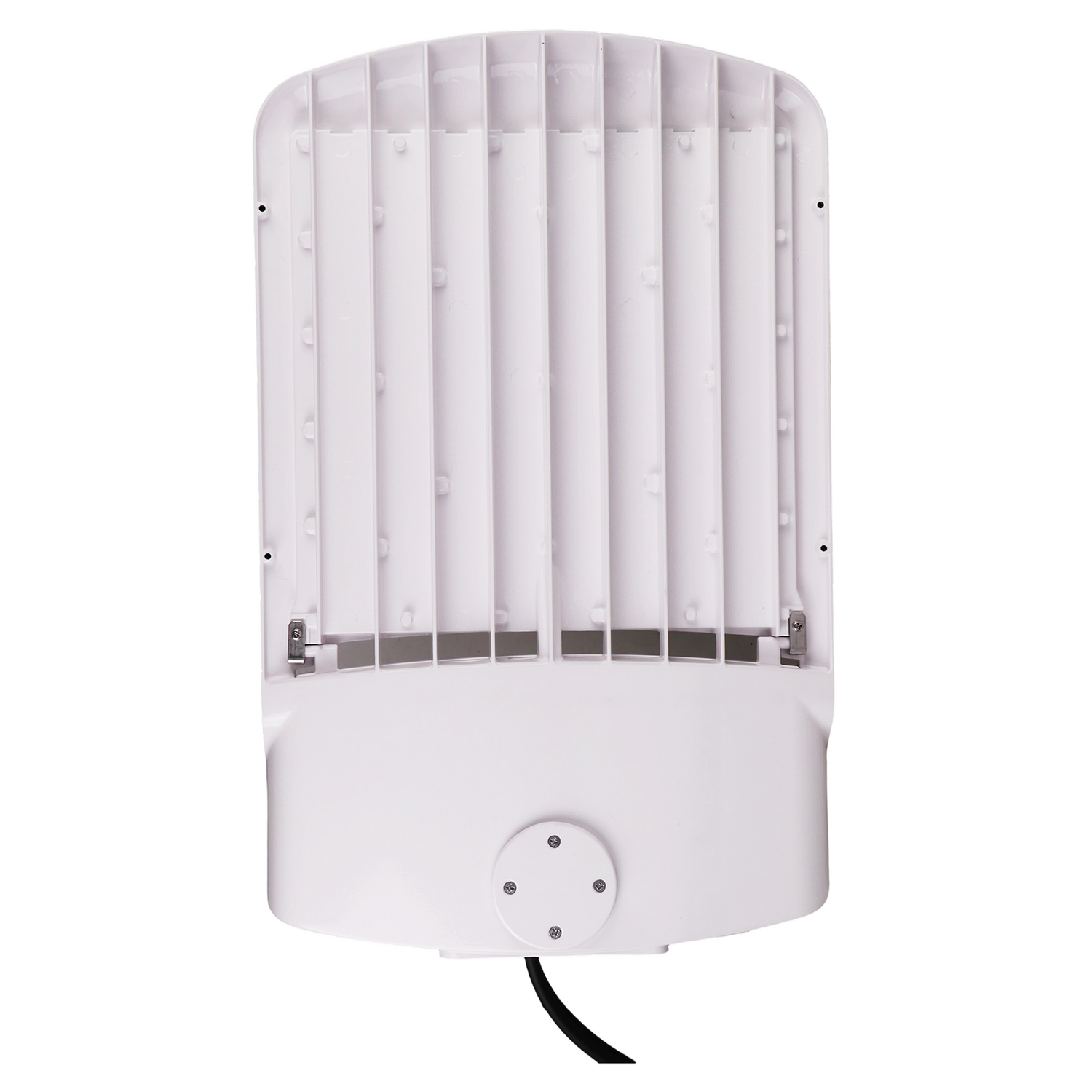

Ledsion V14 300W Shoebox LED Area Light – White housing- Wattage tunable (200/240/300W), 145 LM/W efficiency, Type III distribution. Multiple mounts, 0-10V dimming, high surge protection. Perfect for parking lots, stadiums, warehouses, and commercial areas. 5-year warranty.
Features
- Wattage Tunable – Adjustable 200W / 240W / 300W
- High Efficiency – 145 LM/W with Lumileds LED chips
- Type III Distribution – Optimized for area and roadway lighting
- Multiple Voltage Options – 120-277V or 277-480V
- Heavy-Duty Build – Die-cast aluminum housing with bronze powder-coated finish
- Strong Surge Protection – 6kV built-in + 10kV external
- 0-10V Dimming – Standard dimming capability
- Long Lifespan – 50,000 hours
- Multiple Mounting Options – Slipfitter (AM), Direct Mount (DM), Yoke Mount (YM)
Specifications
| Parameter | Details |
|---|---|
| Model | AST-S-G12C-300WBT3SA3 / AST-S-G12C-300WBT3SH3 |
| Wattage | 200W / 240W / 300W (Tunable) |
| Light Efficiency | 145 LM/W |
| Lumen Output | 29,000 / 34,800 / 43,500 LM |
| Color Temperature | 5700K |
| Light Distribution | Type III |
| Voltage | 120-277V |
| BUG Rating | B5-U0-G5 |
| Dimming | 0-10V Dimming |
| CRI | >80 |
| Operating Temperature | -20°C to +45°C |
| Warranty | 5 Years |
Applications Ideal for large-scale outdoor and commercial lighting:
- Parking Lots & Garages
- Warehouses & Logistic Centers
- Stadiums & Sporting Venues
- Factories & Industrial Parks
- Shopping Malls & Supermarkets
- Auto Dealerships
Mounting Options
- AM Slipfitter Mount
- DM Direct Mount
- YM Yoke Mount
