200W Hazardous Location LED Luminaire - Class I Div 2 - 130 LM/W - 5000K - 0-10V Dimming | EX-200W B3D50D120
200W Hazardous Location LED Luminaire - Class I Div 2 - 130 LM/W - 5000K - 0-10V Dimming | EX-200W B3D50D120 is backordered and will ship as soon as it is back in stock.
Please create an account or contact us to place an order. Direct online ordering is currently unavailable.
Package
Package
- Package size:19* 19* 11 in (1 Pc)
- Weight: 23.1 LBS
Delivery and Shipping
Delivery and Shipping
We promise same day shipping, support pick up from our Dallas warehouse.
200W Hazardous Location LED Luminaire - Class I Div 2 - 130 LM/W - ...
200W Hazardous Location LED Luminaire - Class I Div 2 - 130 LM/W - 5000K - 0-10V Dimming | EX-200W B3D50D120 is backordered and will ship as soon as it is back in stock.

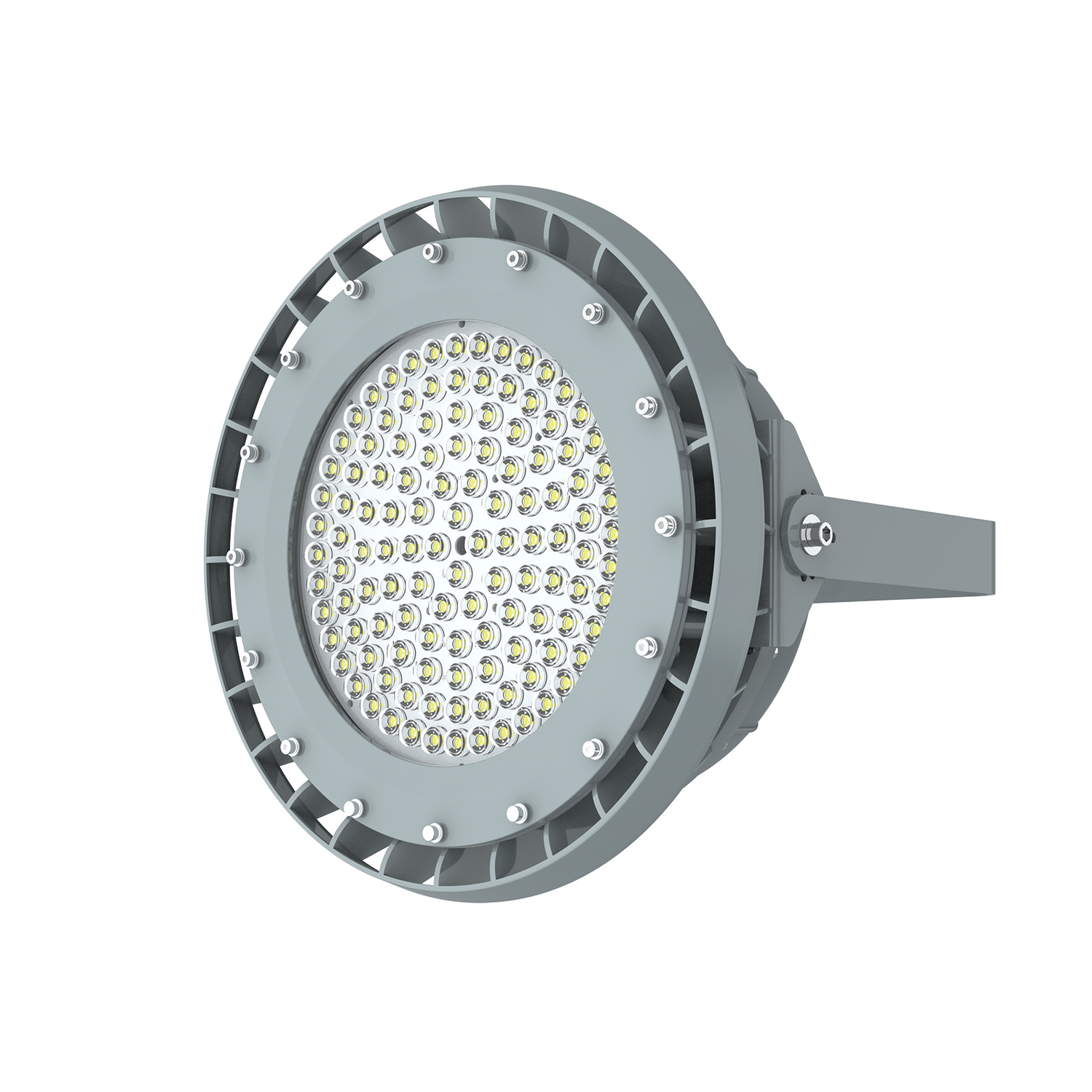

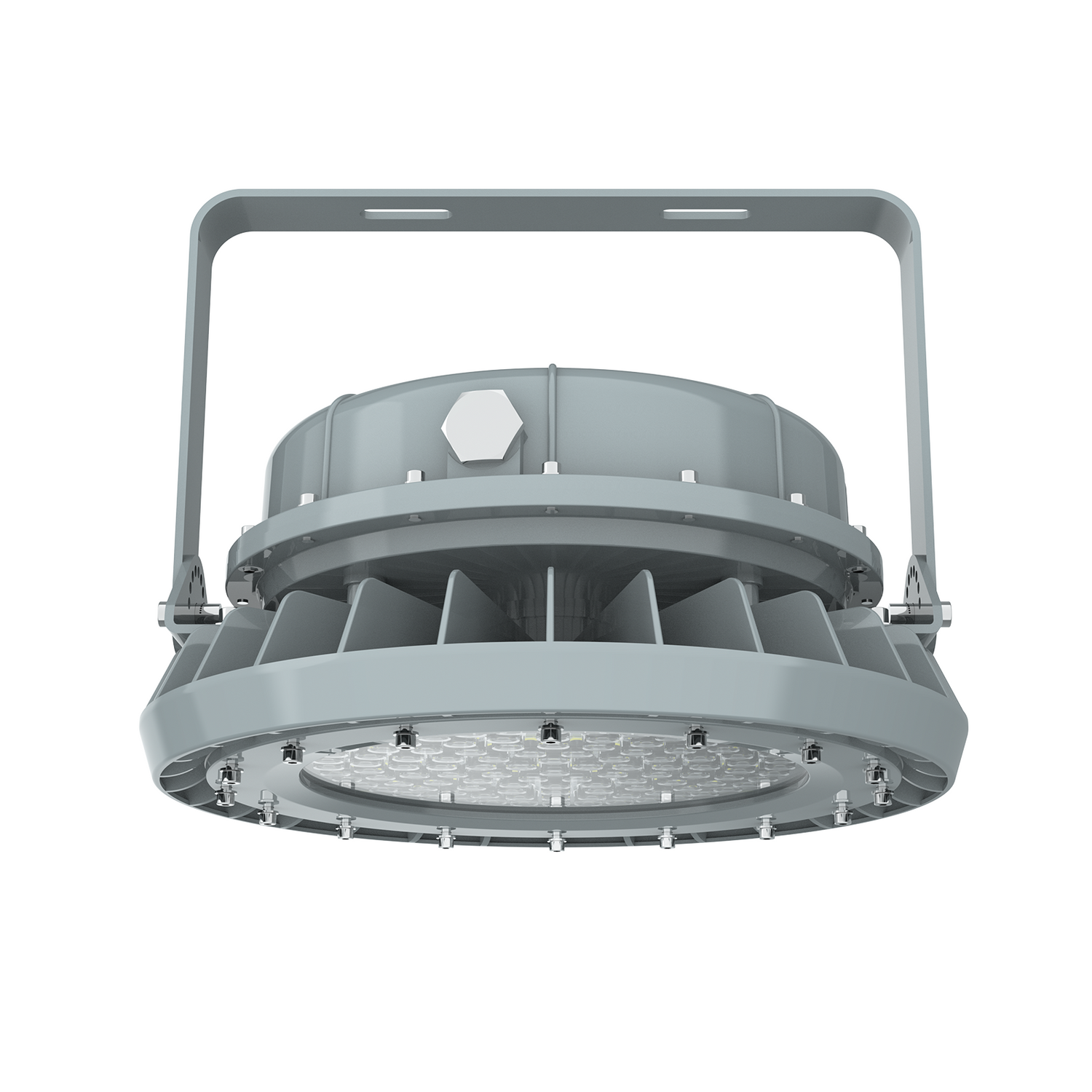

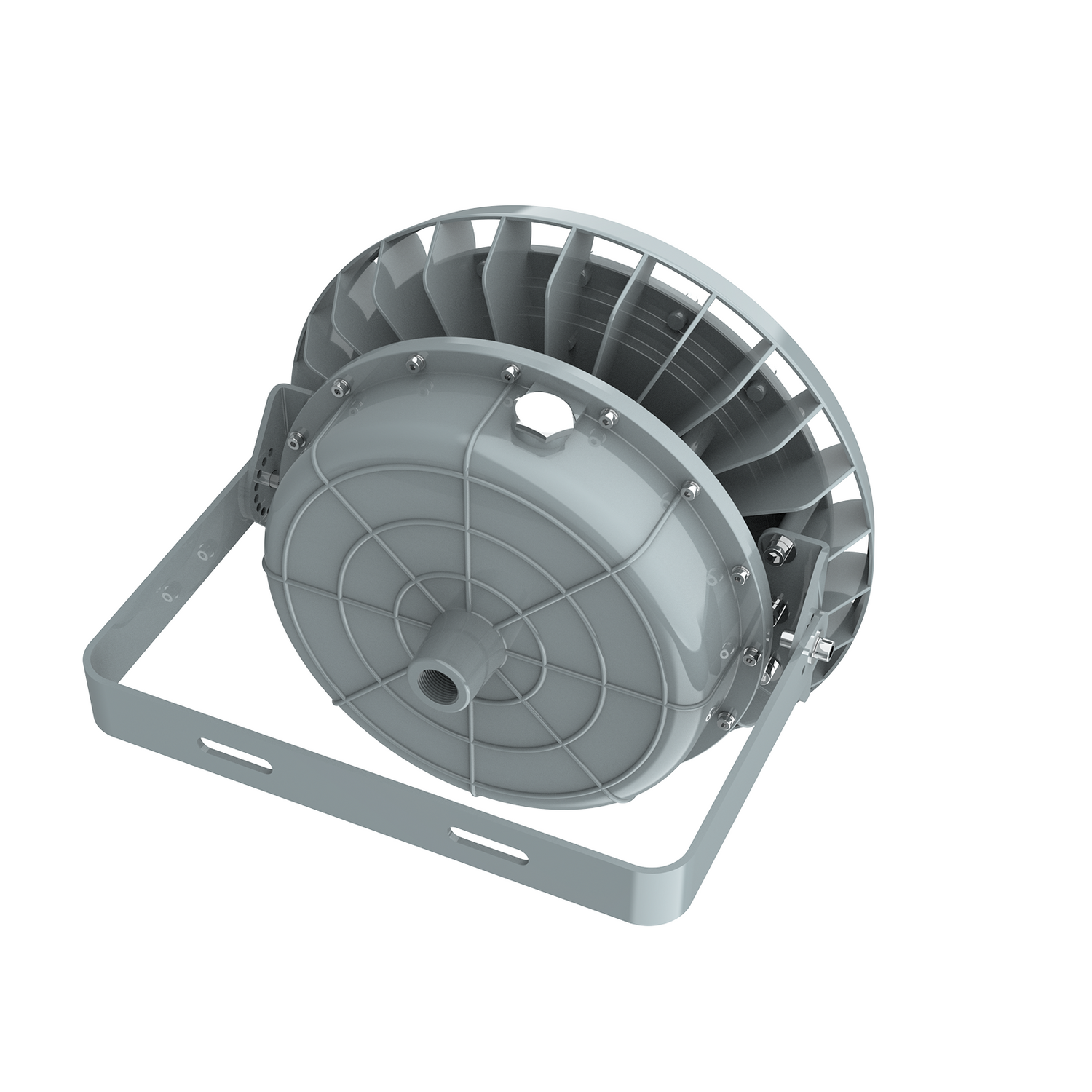

Ledsion 200W Hazardous Location LED Luminaire – UL 844 certified for Class I Div 2 and Class II/III. 130 LM/W, 26,000 lumens, 0-10V dimming, IP66/IK10. Ideal for petrochemical, offshore, wastewater, and heavy industrial hazardous areas. 5-year warranty.
Features
- Hazardous Location Certified – UL 844 for Class I Div 2, Class II Div 1/2, Class III
- High Efficiency – 130 LM/W with 26,000 lumens output
- 0-10V Dimming – Standard dimming capability
- Rugged Construction – Copper-free aluminum housing with tempered glass, IP66 / IK10 rated
- Marine Rated – UL 1598A Marine Outside Type
- Battery Backup Ready – Compatible with emergency lighting (UL 924)
- Wide Operating Range – -40°F to 131°F (-40°C to 55°C)
- Multiple Mounting Options – Ceiling, Wall, Pole Pendant, Hook Pendant, Stanchion, Trunnion
- Superior Durability – Stainless steel hardware, excellent corrosion resistance
Applications
- Engineered for extreme and hazardous environments:
- Power Plants & Petrochemical Facilities
- Chemical Processing Plants
- Wastewater Treatment Plants
- Offshore Platforms & Marine Environments
- Heavy Industrial Storage & Loading Docks
- Coal Mines, Paper Mills & Metallurgical Plants
- Food & Alcohol Processing Facilities
Specifications
| Parameter | Details |
|---|---|
| Model | EX-200W B3D50D120 |
| Wattage | 200W |
| Light Efficiency | 130 LM/W |
| Lumen Output | 26,000 LM |
| Color Temperature | 5000K |
| Beam Angle | 120° |
| Voltage | 120-277V AC |
| Power Factor | 0.95 |
| Dimming | 0-10V Dimming |
| CRI | >72 |
| Protection Rating | IP66 / IK10 |
| Housing Material | Copper-free Aluminum + Tempered Glass |
| Certifications | UL 844, UL 1598, UL 1598A, UL 924, ABS, DLC |
| Warranty | 5 Years |
Mounting Options Ceiling / Wall / Pole Pendant / Hook Pendant / Stanchion / Trunnion
