150W Hazardous Location LED Luminaire - Class I Div 2 - 140 LM/W - CCT 5000K | EX-150W A3D50D120
150W Hazardous Location LED Luminaire - Class I Div 2 - 140 LM/W - CCT 5000K | EX-150W A3D50D120 - EX-150W A3D50D120 is backordered and will ship as soon as it is back in stock.
Please create an account or contact us to place an order. Direct online ordering is currently unavailable.
Package
Package
- Package size:17* 15* 10 in (1 Pc)
- Weight: 22.6 LBS
Delivery and Shipping
Delivery and Shipping
We promise same day shipping, support pick up from our Dallas warehouse.
150W Hazardous Location LED Luminaire - Class I Div 2 - 140 LM/W - ...
150W Hazardous Location LED Luminaire - Class I Div 2 - 140 LM/W - CCT 5000K | EX-150W A3D50D120 - EX-150W A3D50D120 is backordered and will ship as soon as it is back in stock.

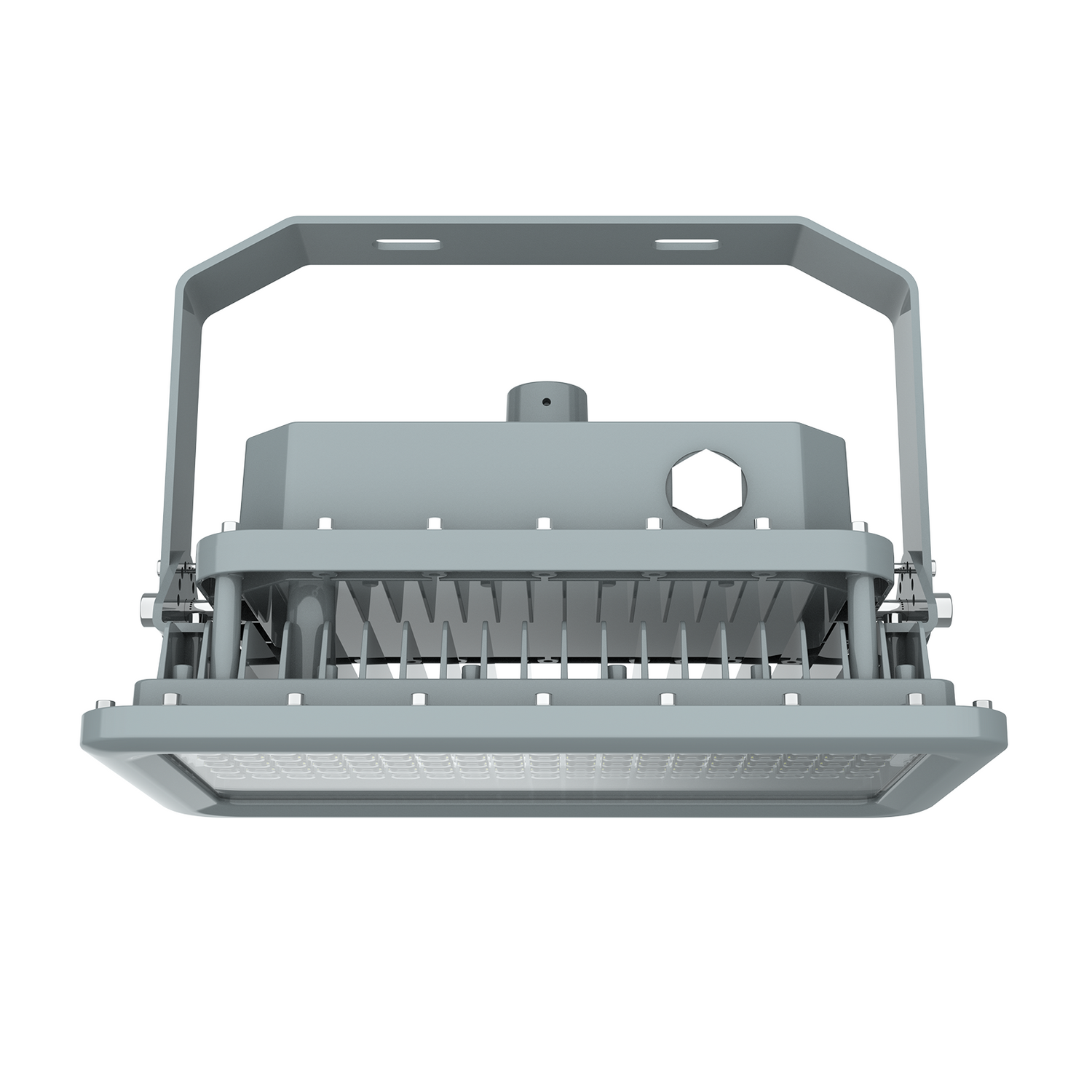

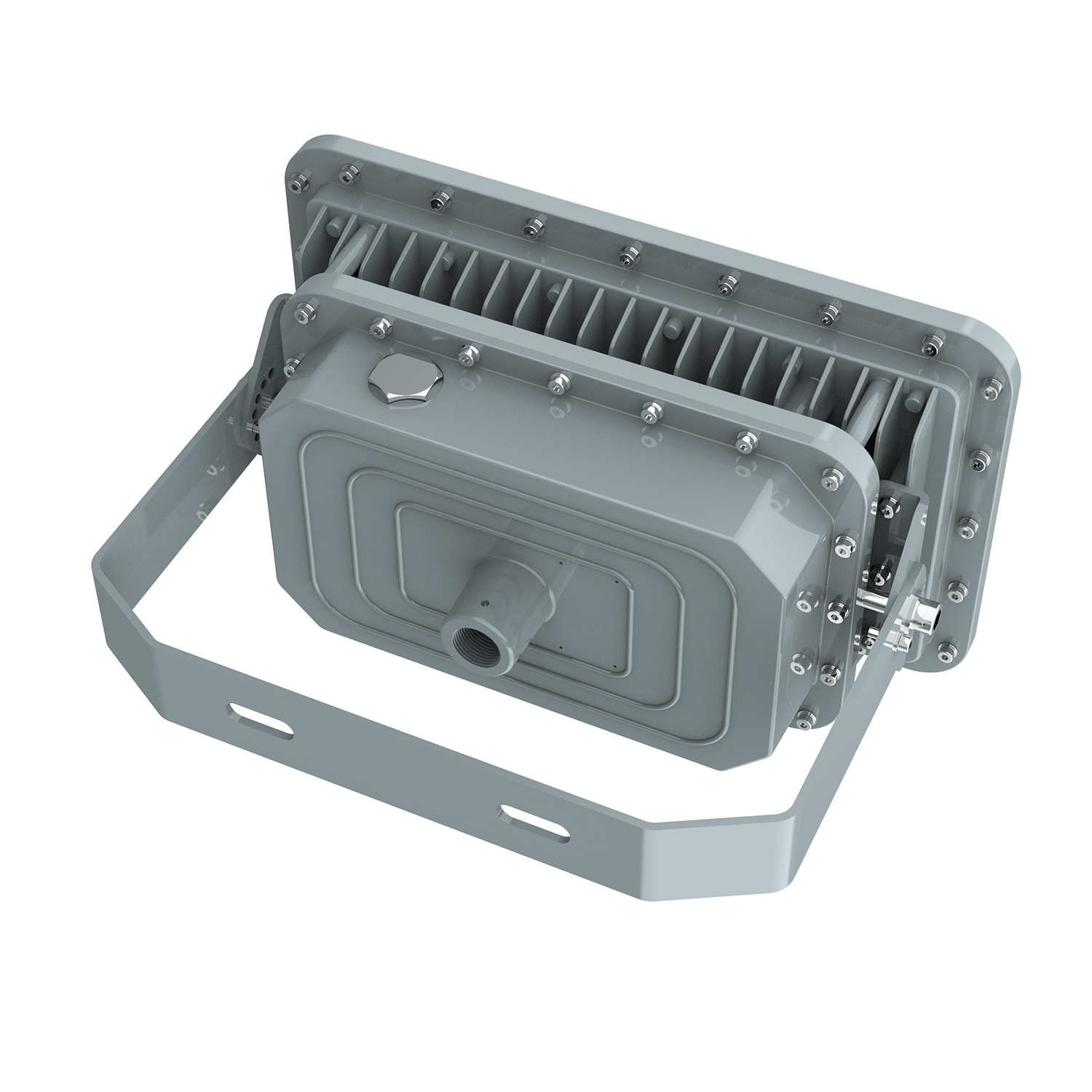

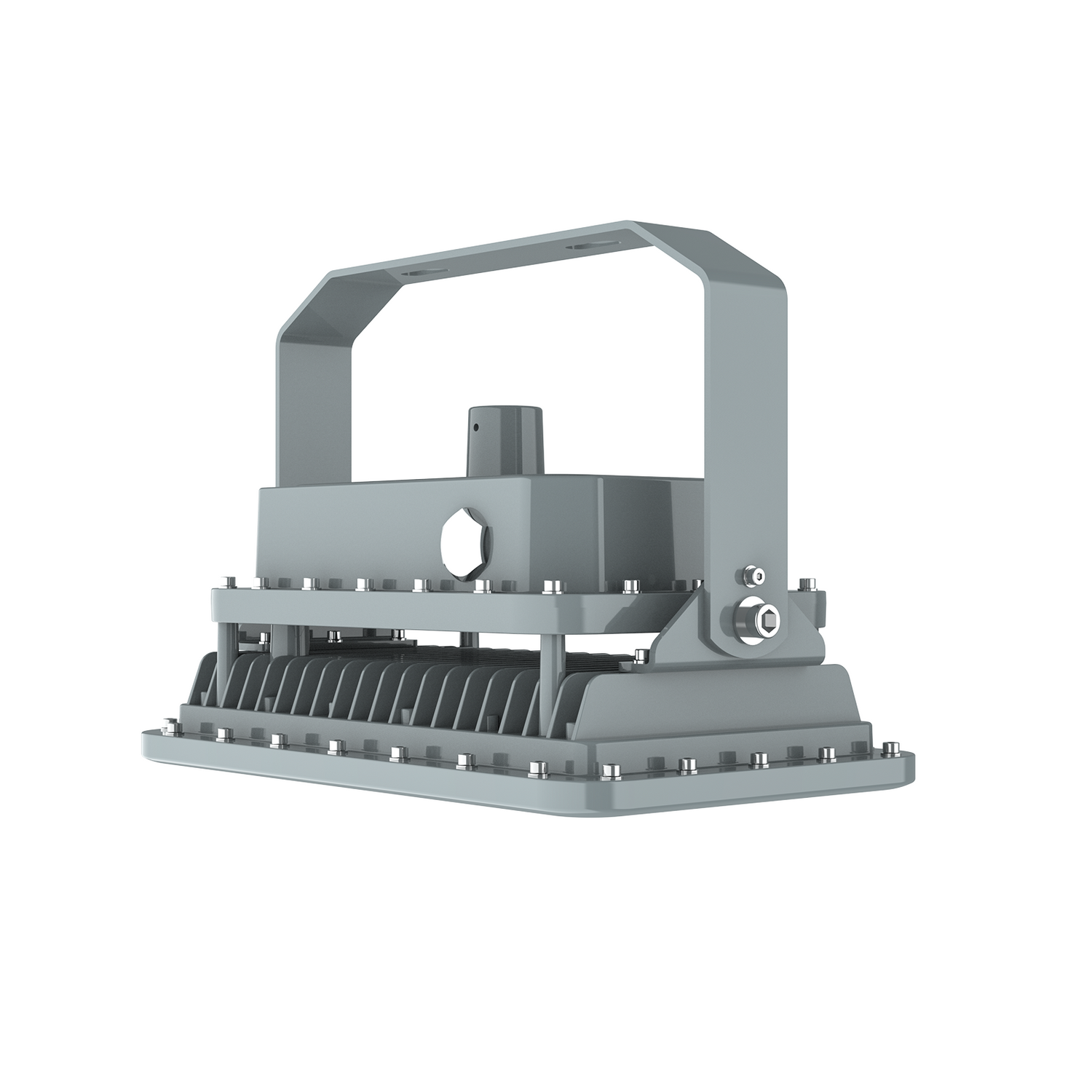

Ledsion 150W Hazardous Location LED Luminaire – UL 844 certified for Class I Div 2, Class II & III. 140 LM/W, 0-10V dimming, IP66/IK10 rated. Ideal for petrochemical, offshore, wastewater, and heavy industrial hazardous areas.
Features
- Hazardous Location Certified – UL 844 certified for Class I Division 2, Class II Division 1/2, and Class III
- High Performance – Up to 140 LM/W efficiency with 2100+ lumens output
- 0-10V Dimming – Smooth and reliable dimming capability
- Robust Construction – Die-cast aluminum housing with tempered glass lens, IK08/IK10 impact resistance
- Marine Rated – UL 1598A Marine Outside Type approved
- Battery Backup Option – Emergency lighting version available (UL 924)
- Wide Operating Temperature – -40°F to 131°F (-40°C to 55°C)
- Long Lifespan – L70 > 150,000 hours @ 55°C
- Multiple Mounting Options – Ceiling mount and wall mount with brackets
Specifications
| Parameter | Details |
|---|---|
| Model | EX-150W A3D50D120 |
| Wattage | 150W |
| Light Efficiency | 140 LM/W |
| Lumen Output | 2100+ LM |
| Color Temperature | 5000K (Daylight) |
| Beam Angle | 120° |
| Voltage | 120-277V AC |
| Power Factor | 0.95 |
| Dimming | 0-10V Dimming |
| CRI | >72 |
| Protection Rating | IP66 / IK10 |
| Housing Material | Die-cast Aluminum + Tempered Glass |
| Certifications | UL 844, UL 1598, UL 1598A, UL 924 |
| Warranty | 5 Years |
Applications The Ledsion EX Series 150W Hazardous Location LED Luminaire is engineered for extreme and high-risk environments, including:
- Power Plants & Petrochemical Facilities
- Chemical Processing Plants
- Wastewater Treatment Plants
- Offshore Platforms & Marine Environments
- Heavy Industrial Storage & Loading Docks
- Coal Mines, Paper Mills & Metallurgical Industry
- Food & Alcohol Processing Facilities
Ideal for areas with moisture, dust, corrosion, vibration, and explosive atmospheres.
