150W/100W/80W Tunable Shoebox LED Area Light - Type III - 135 LM/W - 0-10V Dimming
150W/100W/80W Tunable Shoebox LED Area Light - Type III - 135 LM/W - 0-10V Dimming - SBC14-150/100/80W-277V50K is backordered and will ship as soon as it is back in stock.
Please create an account or contact us to place an order. Direct online ordering is currently unavailable.
Package
Package
- Package size: 22.44 × 13.39 × 13.39 in (2pcs)
- Weight: 17.64 LBS
Delivery and Shipping
Delivery and Shipping
We promise same day shipping, support pick up from our Dallas warehouse.
150W/100W/80W Tunable Shoebox LED Area Light - Type III - 135 LM/W - 0-10V Dimming - SBC14-150/100/80W-277V50K is backordered and will ship as soon as it is back in stock.

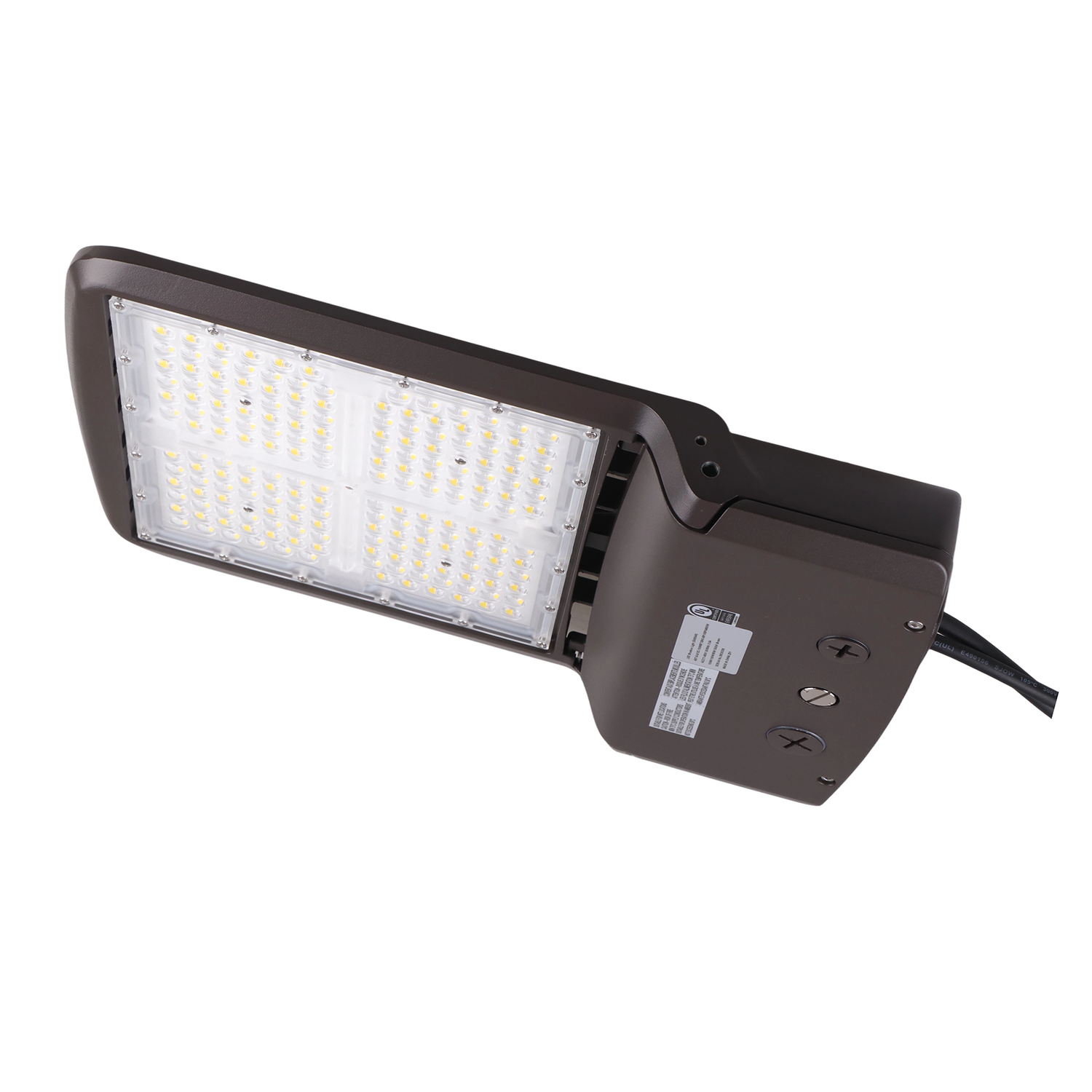

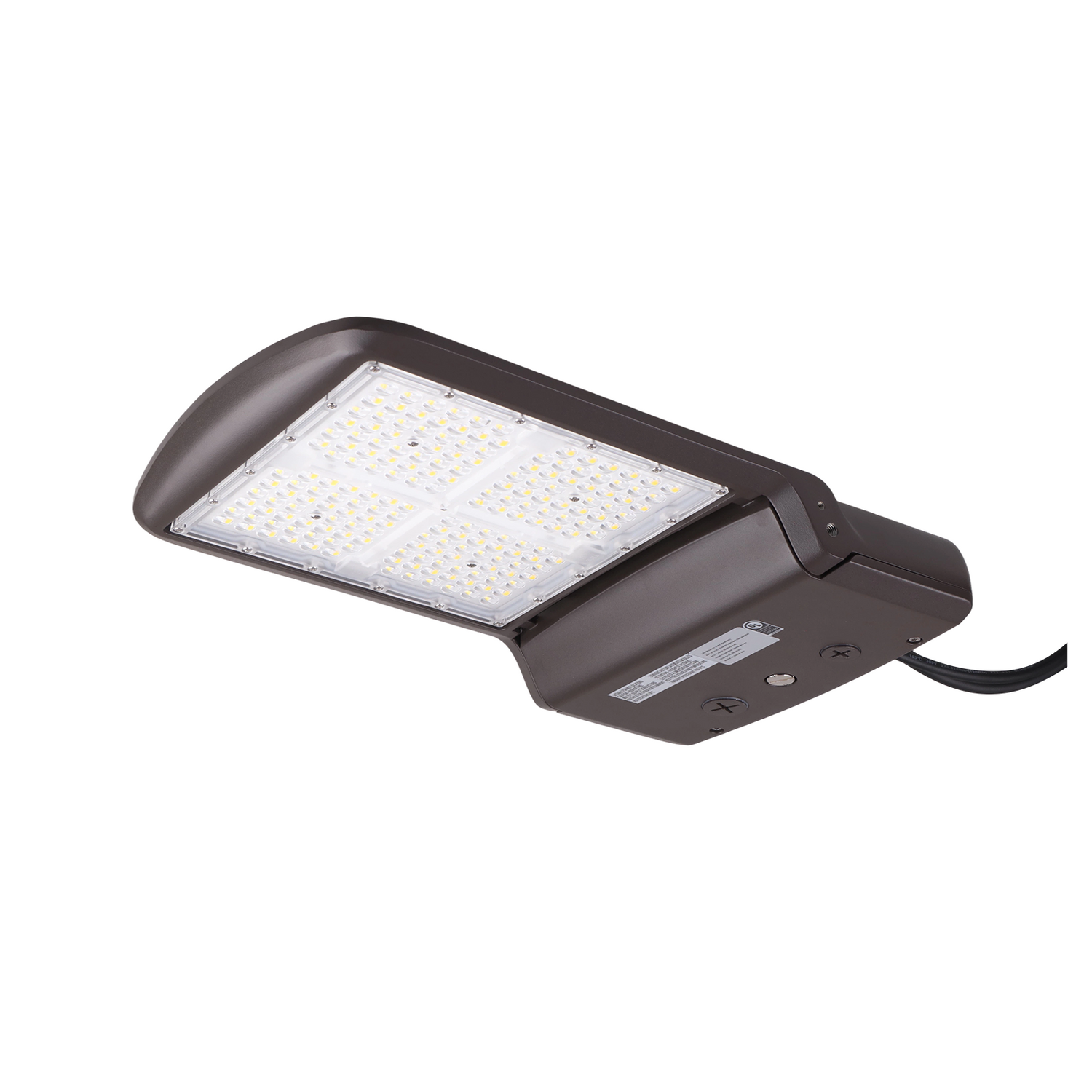

Ledsion V14 150W Shoebox LED Area Light – Wattage tunable (80/100/150W), 135 LM/W, Type III distribution. Multiple mounts, 0-10V dimming, and high surge protection. Ideal for parking lots, warehouses, stadiums, and commercial areas. 5-year warranty.
The Ledsion V14 Shoebox LED Area Light is perfect for large outdoor and indoor commercial spaces:
- Parking Lots & Garages
- Warehouses & Logistic Centers
- Stadiums & Sporting Facilities
- Factories & Industrial Areas
- Shopping Malls & Supermarkets
- Auto Dealerships
Features
- Wattage Tunable – Adjustable between 80W / 100W / 150W
- High Efficiency – 135 LM/W with Lumileds LED chips
- Multiple Voltage Options – 120-277V or 277-480V
- Robust Build – Heavy-duty die-cast aluminum housing with bronze powder-coated finish
- Surge Protection – 6kV built-in + 10kV external surge protection
- Long Lifespan – 50,000 hours L70
- 0-10V Dimming – Standard dimming capability
- Type III Light Distribution – Optimized for area and parking lot lighting
- Multiple Mounting Options – Slipfitter (AM), Direct Mount (DM), Yoke Mount (YM)
Specifications
| Parameter | Details |
|---|---|
| Model | AST-S-G12C-150WBT3SA1 / AST-S-G12C-150WBT3SH3 |
| Wattage | 80W / 100W / 150W (Tunable) |
| Light Efficiency | 135 LM/W |
| Lumen Output | 10,800 / 13,500 / 20,250 LM |
| Color Temperature | 5000K / 5700K |
| Light Distribution | Type III |
| Voltage | 120-277V or 277-480V |
| Power Factor | >0.9 |
| Dimming | 0-10V Dimming (Standard) |
| CRI | >80 |
| Operating Temperature | -20°C to +45°C |
| BUG Rating | B3-U0-G3 |
| Surge Protection | 6kV + 10kV |
| Warranty | 5 Years |
Mounting Options
- AM Slipfitter Mount
- DM Direct Mount
- YM Yoke Mount
