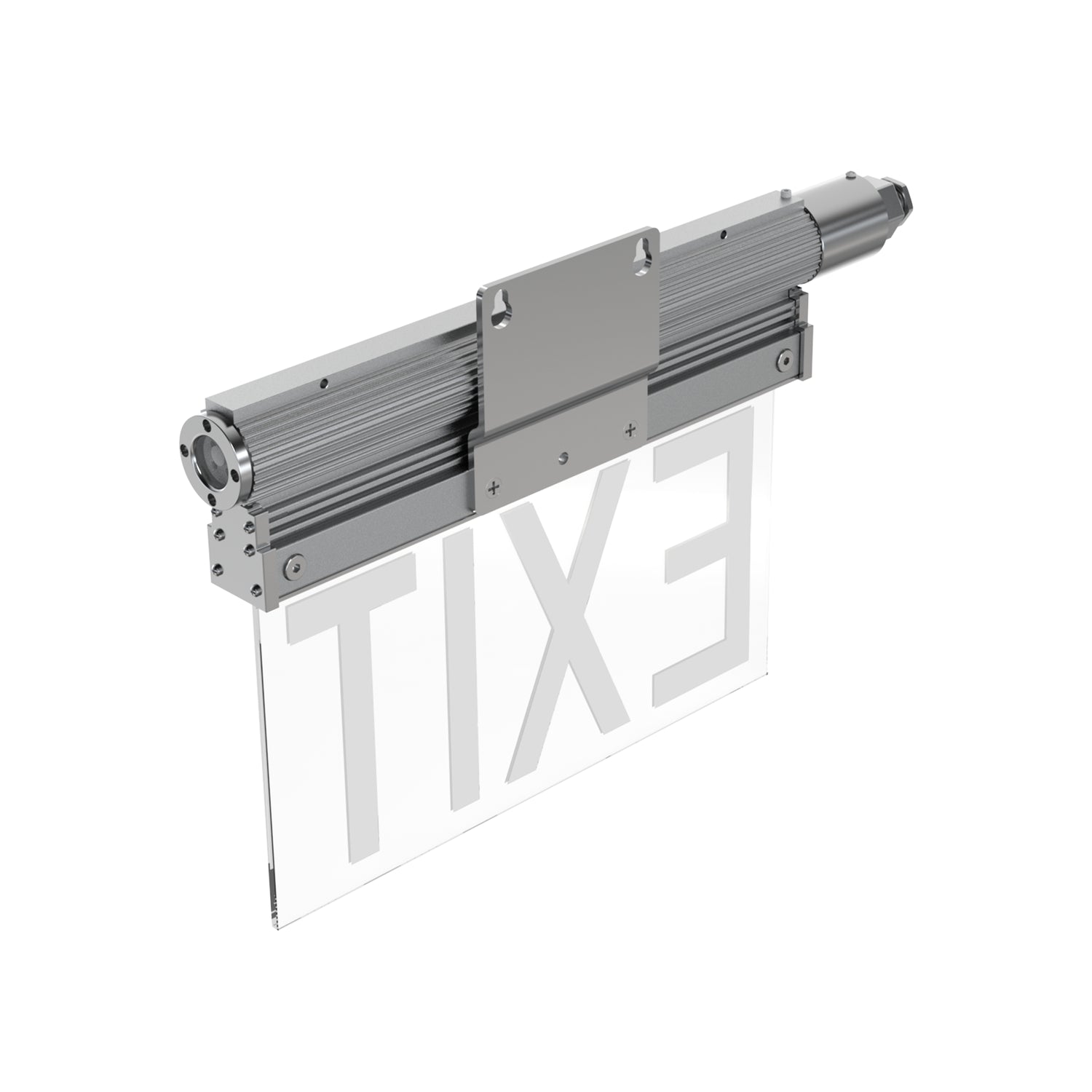

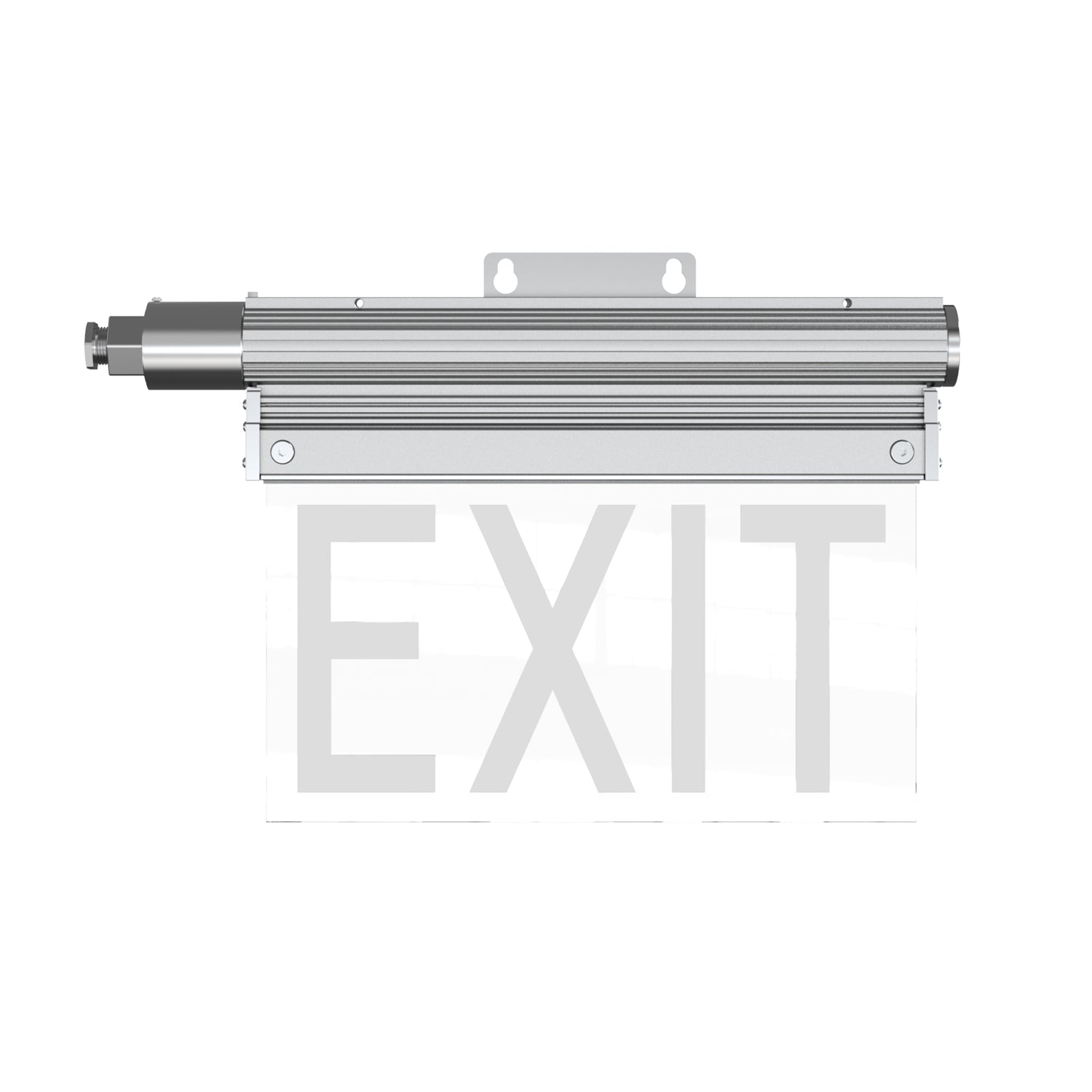

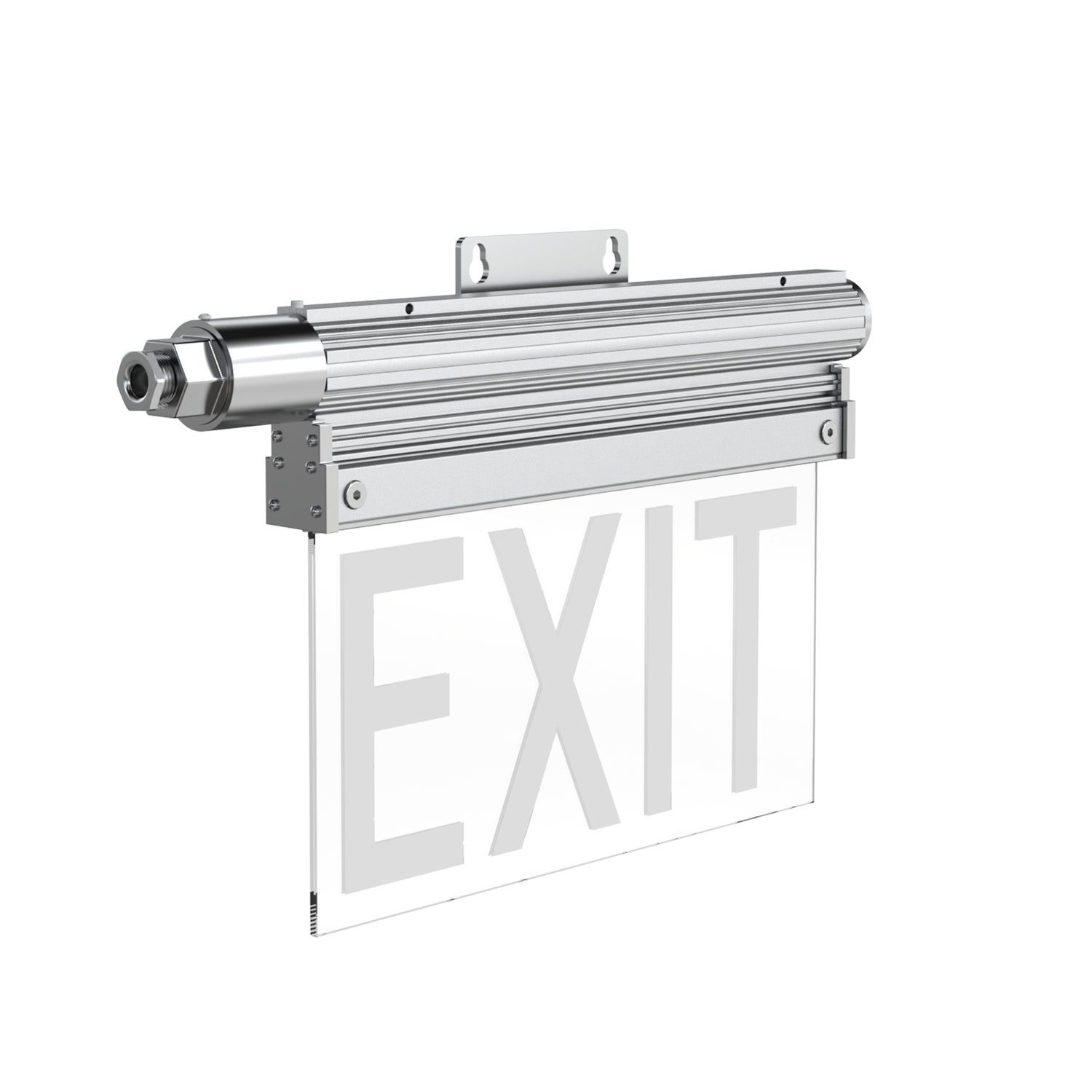

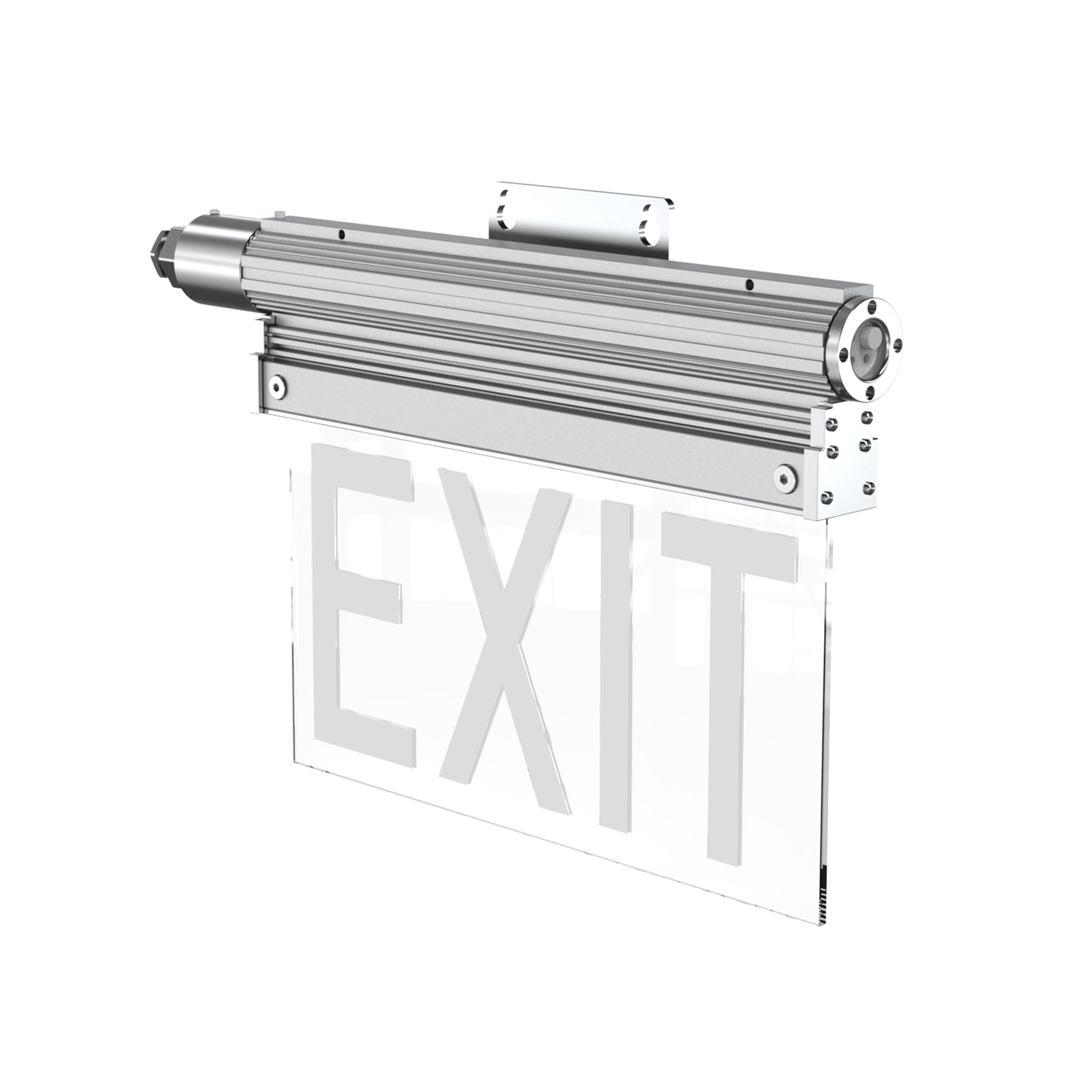

The LEDSION 5W Explosion-Proof Emergency Edge-Lit Exit Sign Light is designed for hazardous locations where flammable gases, vapors, or combustible dust may be present. Built to meet strict UL hazardous location standards, this fixture provides reliable red EXIT indication and long-duration emergency illumination to ensure safe evacuation during power outages.

With a sealed, IP66-rated enclosure, lightweight construction, and integrated junction box with emergency driver, this exit sign delivers dependable performance in harsh indoor and outdoor environments. When normal power is restored, the unit automatically switches back to mains power operation.

Key Features

• Suitable for wet locations

• Lightweight and compact design for easy installation

• Integrated junction box with driver and emergency backup

• IP66 ingress protection – dust-tight and water-resistant

• Low energy consumption

• 3-hour (180-minute) emergency operation

• Stainless-steel exposed fasteners for high corrosion resistance

• Alternate EXIT legends and multiple language options available

• Sealed unit design – battery is not replaceable
  (Entire exit sign must be replaced when battery reaches end of life)

• Automatically reactivates via mains power when power is restored

• Designed for UL 844 hazardous location environments

Hazardous Location Ratings

• Class I, Division 1

• Class I, Division 2, Groups A, B, C, D

• Class II, Division 1, Groups E, F, G

• Class II, Division 2, Groups F, G

• Class III

Technical Specifications

• Brand: LEDSION Lighting

• Model: EX-5WVNRD180 / LS-ES-A01

• Rated Power: 5W

• Emergency Duration: 3 hours (180 minutes)

• Input Voltage: AC 100–277V

• Light Color: Red

• Exit Display: EXIT with dual arrow indicators

• Viewing Sides: Double-sided EXIT logo

• Fixture Size: 417 × 425 × 116 mm

• Operating Temperature: –20°C to +60°C

• Housing Material: ABS

• Lighting Type: Edge-lit LED exit sign

Certifications

• UL 924

• UL 844

• UL1598 / UL1598A

• UL913

Applications

• Oil & gas facilities

• Chemical and petrochemical plants

• Battery rooms and pump stations

• Grain handling and dust-hazard areas

• Marine and offshore platforms

• Industrial corridors, stairwells, and emergency exits in hazardous locations
